First Preview of Adaptive Walking

Mar 27, 2008 in ,
I just finished the first presentable demo. It is just one character with a fixed animation for now, and the foot step placement doesn't yet attempt to avoid intersecting geometry, but as an appetizer of what is to come, it will do. Click the image below to view the demo.


The demo above is made from just one animation that was made for walking straight ahead on a plain surface. There are two primary techniques that were used here to make the animation look quite acceptable when the character walk up or down steps:
  1. The system maintains the original ankle local rotation while the foot is in the air, and only enforces a re-alignment of the foot while it is on the ground. While landing on the ground and while leaving the ground, a blending between these two modes of operation is used.
  2. The system keeps track on when to use the heel and when to use the toe as the point of reference relative to the ground. This is based on which one is closer to the ground at any given point in time.
The features to be implemented next are:
  • Blending between several animations.
  • Support for walking on sloped surfaces.
  • More sophisticated step length / step frequency mechanism.
  • More intelligent foot placement mechanism that avoids ledges.
Anyway, I'm glad to finally have something to show, even if it isn't much for now. Comments are much appreciated!
Read More »

My Old Walking System

Mar 19, 2008 in , ,
Creating a system for adaptive animation for character locomotion in computer games is not only a very exciting master thesis project, it is also my opportunity to work with an idea I have had for a long time.

Back in 2001, when I was 18, I made rendered 3D animations in my spare time with the freeware raytracer POV-Ray. POV-Ray doesn't have a graphical front-end like 3Ds Max etc; instead you make your images and animations with a scripting language.

Among many other things, I made a walking system for POV-Ray. Here are some of the things it could do:


Making the system was a rather big challenge. POV-Ray has no support for keyframe animation so I had to make all animation 100% procedural and animate it by scripting! This was a very slow process and I never got as far with the system as I had in mind.

Now, using the Unity game engine, I am creating a walking system again. This one is different. In the system for POV-Ray (that was made for offline rendering) every step was calculated in advance. With the new system, characters need to respond dynamically from input from the player or from AI. Also, this time I have keyframe animation, skeletal animation, animation blending, and many other features at my disposal, which makes it easier to do more advanced things, but which also bring new challenges.

Although the new walking system for Unity will be very different from the old walking system for POV-Ray, I still think the video here will help make it easier to grasp what the system will be all about.
Read More »

Walk and Run Cycle Analysis 2

Mar 18, 2008 in ,
In the past week I have been continuing my work on a script to analyze the movements of the feet in walk and run cycles. The primary new result is the analysis of foot lifting and landing times. By analysis the script finds these times for each foot:
  • Lift time: When the foot begins to lift from the ground.
  • Liftoff time: When the foot lifts off completely from the ground.
  • Strike time: When the foot first touches the ground again.
  • Landing time: When the foot has fully landed on the ground.
These times can be seen in the bottom graph in the interactive analysis visualization here. Click to activate it.

Note that the graphs refer to the ankle and toe of each foot. What they really measure is the ankle and foot positions projected onto the ground at the stance pose, i.e. points on the underside of the foot. Since these projected positions are approximately at the heel and toe, I will be referring to heel and toe positions below.

Previous work

Automatically finding the foot lifting and landing times can be tricky, especially if the animations that are being analyzed are not of the highest quality.

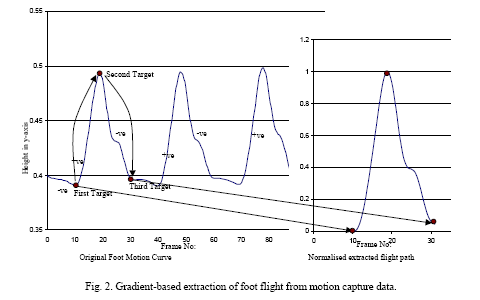

In the paper Adapting motion capture data using weighted real-time inverse kinematics by Michael Meredith and Steve Maddock, foot flight paths are extracted from motion capture data using a curve gradient analysis technique:
Our approach for retrieving the flight path from the motion capture data is based primarily on a gradient analysis technique where, over the course of the original motion, we analyze the height value of one of the character’s feet. The first target we look for is a switch from a negative to a positive gradient on a frame that is within 10% of the global minimum height for the foot. This gives us the start of the foot flight where the foot is just about to leave the ground.

From the first target, we progress along the original flight path until we meet a second gradient change from positive to negative, which is on a frame whose height value is within 10% of the global maximum. This second target is the peak of our flight height. Continuing along the original path, we locate the third and final target via one last gradient switch from negative to positive, whose frame height is again within 10% of the global minimum. This technique is demonstrated pictorially in Figure 2.
I have been inspired by this technique by Meredith and Maddock. However, in my own tests I have found their procedure insufficient to properly handle the very varied animations I have used as test cases for my system.

Tricky animations

In my test animations, the feet don't always actually lift up from the ground when the legs starts to swing forward, but rather sort of drags along the ground. Also, the feet sometimes intersect with the ground, which also makes the analysis non-trivial.

In order to make the analysis error-tolerant in these kinds of scenarios, I have used several rules in combination to find the foot lifting and landing times.

New rules for the analysis

The new rules are highly dependent on the stance time which was described in the previous post. The stance time is the time where the foot is standing most firmly on the ground. Starting from this, the new rules are used to find the lifting and landing times fo the feet. The same rules are applied both for finding lifting and landing times, and they are used on both the heel and toe Y movement curves (i.e. vertical movements). They are as follows:
  1. Start following the Y movement curve from the stance time and forward (/backwards) until the height curve reaches 10% of the maximum height of the curve. The lifting (/landing) must come before this point.
  2. Inside this span of the curve, find the point with the maximum curvature (the maximum second derived of the curve, i.e. the most sudden rise in the curve).
  3. Disregard points on the curve that are below the ground level.
  4. Disregard points on the curve where the first derived (i.e. the slope) is below zero (or above zero when searching backwards).
These rules combined will almost surely find the point on the curve that intuitively looks like the point where the curve starts to rise from the ground. However, another check has to be made. This check is made for the foot Z movement curve (i.e. the swinging back and forth of the foot).
  1. Start following the Z movement curve from the stance time and forward (/backwards) untill the slope is more than 50% different than the slope at the stance time. Since the speed at the stance time is the point of reference for the ground, a speed that deviates more than 50% must mean that the foot is no longer following the ground, and thus no longer standing on the ground. If this time occur before the lifting time (/landing time) found by the other rules, then this time is used as the lifting time (/landing time) instead.
The 50% value here has been chosen by trial and error from the test animations. For a completely accurately animated character, the feet should be moving with a completely constant speed while they are on the ground since the ground is moving backwards with a constant speed relative to the character. However, this is not always the case in actual keyframed animations, and the speeds of the feet can be quite inconsistent. Thus a large tolerance value has to be used.

Motion synthesis next

The next step is to use the motion analysis data to synthesize adaptive walking and running animations. Using the lifting and landing times, the foot flight paths and the analyzed speed of each animation, new paths for each foot can be generated in accordance with the environment and variable movement of the character.
Read More »

Walk and Run Cycle Analysis

Mar 11, 2008 in ,
I have been working on a script to analyze the movements of the feet in walk and run cycle animations. From this analysis the speed of the character can be determined, as well as when and where the feet touch the ground. Click to see the analysis in action here:

3 graphs

There are three graphs shown in the view.
  1. The bottom graph show the vertical movements of the ankle (red curve) and toe (green curve).
  2. The middle graph show the horizontal movements of the ankle (red curve) and toe (green curve). It also shows a black curve that is a weighted average between the ankle and toe curves.
  3. The top graph shows the balance of importance between the ankle and the toe, based on which is closer to the ground. This curve is used as the weighing factor for the black cuve in the middle graph.

Stance time and speed

Also, the analysis finds a "stance time" for each foot. This is the time when the foot is most firmly standing on the ground. The graphs are shown such that the stance time is always at the left side of the graph for all feet. This way, is is easy to compare the curves of the different legs and the different animations.

The stance time of a foot is determined by finding the point in time when the ankle height and toe height are as low as possible. It is important that they are both low, so rather than using the average of ankle and toe height, the maximum of the two is used.

By sampling the horisontal movement of the foot at points in time around the stance time, the overall speed that the character is moving with can be concluded. It is important to determine the movement of the foot from the part of the foot that is currently closer to the ground, thus the black curve from the middle graph is used. Using just the ankle movement or just the toe movement would give incorrect results.

Test data

I have tried to design the analysis such that it makes as few assumptions as possible. There are a few though:
  • The character must be aligned with Y = up and Z = forward.
  • The animation must contain only one cycle, i.e. one step with each foot. For that reason, skipping is currently not supported. There doesn't have to be any symmetry in the steps though, so e.g. a gallopping horse should work fine.
Currently the analysis method has been tested with a soldier character with a walk cycle and two run cycles as well as a robot character with a run cycle. I would like to test the system with many more characters and animations, including creatures with more than two legs, so I am currently looking into ways to get more material to test with. The goal is to create a robust analysis that can correctly interpret most animations that are thrown at it.
Read More »

Adaptive Animation for Character Locomotion

Mar 4, 2008 in ,
I have just begun working on my Master Thesis, which I will be making in collaboration with the company Unity Technologies that make the awesome Unity game engine.

The Master thesis will be about "Adaptive Animation for Character Locomotion", which basically means creating a system for adapting walking, running, and crawling keyframed animations to a dynamic environment. The system will take curved paths, uneven terrain, and variable speed into account all the while ensuring graceful footsteps without slipping feet and motions that stay as faithful as possible to the original keyframed animations under the given restraints. Inverse kinematics is one of many techniques that will be involved in this.

Goals and perspectives

The system is meant to be generic in nature, working not just for biped characters (with two legs) but also for example for dogs, bugs, and spiders and, say, robots and aliens, provided that they move around using a limited number of legs. This list of features is the ideal case - time will tell how far I get within the timeframe of my Master Thesis. Hopefully I can continue working on the project after my graduation, if necessary.

In the end, the result of my work will be made available to all users of Unity free of charge, for any use. I hope to get people from the Unity user community involved in testing the system as it is developed, since one important success criteria is the usefulness and usability as perceived by the developers using the system. It will take some time before the first prototype is ready though, as I've only just begun.

The project up until now

My original "pitch" of the project to Unity was a presentation based on this slideshow: See PowerPoint slidehow

A few ideas have already changed since that. For one thing, the idea that animators must enrich the animation cycles with additional data has been abandoned. The data needed is for example information about when exactly each foot leaves the ground and land on the ground again. The new plan is that this will be automatically analyzed and calculated by the system. More on that in a later post.

In order to quickly get my feet wet, I've made this little demo, where I have modified the Goober guy that comes with one of the Unity tutorials, and made his legs use some very simple inverse kinematics:

Click the image to make the demo run in the browser. Just click yes to install the Unity browser plug-in. Note that in this simple demo I simply adjusted the altitudes of the feet, so feet slippage etc. are not prevented. The actual system will work in a completely different way.

I have already gotten some interest and positive feedback in the Unity forums. Stay tuned!
Read More »

runevision blog online

Mar 3, 2008 in , ,
My website runevision.com has been online since 1998. Now, ten years later, runevision blog is started to make it simpler for me to communicate developments in ongoing projects and other things in my life.

For a start, the blog will mainly be centered around my master thesis project on Adaptive Animation for Character Locomotion, which I have just begun working on. For the next half a year, this blog will be a place for myself and others to track the progress of the project, see the ongoing results, read about the thoughts behind the technical details, and roll eyes at the occasional silly remarks.

The master thesis marks the end of my education in Multimedia with specialization in Games Programming at the University of Aarhus, Denmark. After my graduation, I am looking forward to a carreer in the game industry as a games programmer. Well, enough background - you can always go to runevision.com for more. The blog is now officially open. (Note: Post appearing before this one have been migrated retroactively from my own news entry system.)
